廣播 (Broadcast)

1.0/2.3

Broadcast

更多

1.0/2.3型同軸連接器的頻率應用範圍則高達4 GHz。

  • 系列特色:節省空間、密集封裝、高數據速率
  • 固定類型:推拉
  • 阻抗值:50Ω
  • 頻率範圍:DC 至 4 GHz
  • 端子類型:壓接、焊接
  • 建議應用:編碼器、基站、濾波器和無線組件、交換設備、數據通信、視頻處理器
1.0/2.3

BNC

Broadcast

更多

50 Ω的BNC同軸連接器,頻率應用範圍高達4 GHz,若是75Ω的,頻率應用範圍則高達1 GHz。

•系列特色: 簡易安裝、安裝成本低
•固定類型: 卡口鎖
•阻抗值: 50 Ω / 75 Ω
•頻率範圍: 高達4 GHz赫茲
•端子類型: 壓接、夾接、焊接、插接
•建議應用市場: 計算機網路、音頻、數據處理設備、電信設備

BNC

F

Broadcast

更多

• 系列特色:TV各種領域電視系統連接轉換

• 固定類型:螺紋型

• 阻抗值:75 Ω

• 頻率範圍:DC - 3GHz

• 端子類型:壓接、夾接、焊接、插接、轉接適配器

• 建議應用市場:家庭電視有線接收器、衛星天線系統、無線電頻率應用、CCTV系統等

F

MCX

Broadcast

更多

MCX型同軸連接器的頻率應用範圍高達6 GHz。

•系列特色: 節省空間、快速組裝
•固定類型: 嵌入型
•阻抗值: 50 Ω
•頻率範圍: 高達 6 GHz
•端子類型: 壓接、焊接
•建議應用市場: 汽車產業、WLAN、PC/LAN、基地台、廣播、無線/網路天線、儀表、通訊、全球行動通訊系統

MCX

N

Broadcast

更多

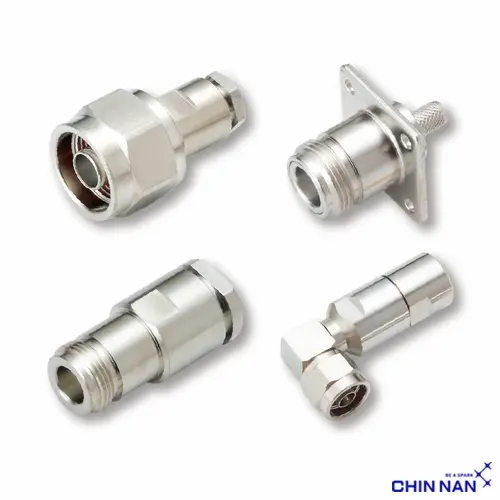

N型連接器可應用於廣播(Broadcast)解決方案,50 Ω的頻率應用範圍高達11 GHz,若是75Ω的,頻率應用範圍則高達1.5 GHz。

• 固定類型:螺紋型

• 阻抗值:50 Ω / 75 Ω

• 頻率範圍:DC - 11 GHz

• 端子類型:壓接、夾接、焊接

• 建議應用市場:航空、廣播、音頻、視訊產業中的微波零件(濾波器、耦合器、多工器、分配器、放大器和衰減器)

N

RCA

Broadcast

更多

• 系列特色:廣泛應用在視訊、音訊類比與數位色差分量傳輸

• 固定類型:插接式

• 阻抗值:75 Ω

• 頻率範圍:DC - 250 MHz

• 端子類型:焊接、插接、轉接適配器

• 應用產業與市場:常用於低頻信號傳輸,如專業音頻設備、娛樂系統、影音設備、電視等消費性電子產品。

RCA

SMA

Broadcast

更多

與軟性纜線搭配的SMA型同軸連接器,其頻率應用範圍高達12.4 GHz。若是搭配半軟性纜線,頻率應用範圍則高達18 GHz。

•系列特色:低駐波比、寬頻特性表現

•固定類型:螺紋型

•阻抗值:50 Ω

•頻率範圍:DC-18 GHz

•端子類型:壓接、夾接、焊接

•建議應用市場:電路板、微波元件、RF組件

SMA

Kits

Broadcast

更多

透過我們射頻連接器測試套組,輕鬆找到符合您需求的連接器。我們提供多種常用公規測試接頭,讓您事先評估,提升工作效率與準確性。

Kits
